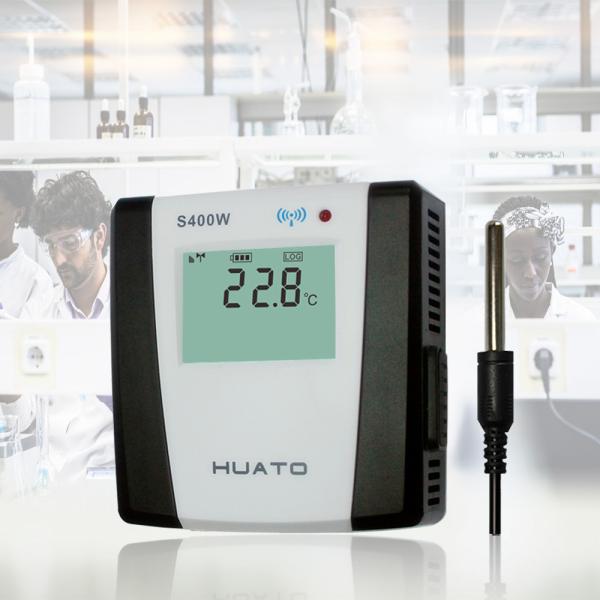

S400 wireless temperature and humidity data logger is a high speed, intelligent device developed by
HUATO which combines the advantages of its relevant devices. With built-in memory and Zigbee wireless
transmission function, it can record 8192 readings as well as remotely monitoring warehouse, lab,
refrigerator, cold storage room,etc. It adopt 2.4G frequency to transmit data, building a monitoring
network with it requires no wiring, it’s reliable and easy to operate.
Comparing to traditional temperature and humidity data logger, wireless data logger is better suited the
ever increasing working pace. The major advantage of such a system is that it can remotely monitor
environments in real-time without supervision. With the help of 2.4G Zigbee wireless networking,
monitoring software, and a data receiver in office, users can effortlessly monitor temperature and
humidity changes in real-time about all monitoring points clearly. Besides real-time monitoring, users
can also view recorded data and when data value exceeds settings, monitoring client and the davice
itself will alarm users with sound and light or SMS, making it more convenient for relevant personnel to
handle what happened. This wireless data logger is ideal for the monitoring of fixed points. For the
monitoring of moving points like vehicles, just add a GPRS module and we can achieve the same effect.
Wireless monitoring system for refrigerator and indoor environments:
View real-time/historic data via any authorized PC in LAN
It’s OK to open refrigerator for a while, Alertor will be triggered only when data value exceeds settings
Alarm times can be limited to avoid frequent alarm, support fault recovery SMS.
Timing SMS: send SMS to report system status everyday
environmental monitoring system
This environmental monitoring system consist of 3 parts:
the device layer , control layer and user layer.
User layer : including any authorized computers in this system. These devices is allowed to access
the real-time running information and historic data of this system after installed the ToClient software.
Working principle: all data is stored in the database of control layer(control server). Users can view
the real-time/stored data via LAN/Internet. When the monitoring data value exceeds settings set by user,
this software will also play alarm sound or send email/SMS to alarm users.
Control layer: the ToMonitor runs on a server, it writes all real-time data collecting form end devices to
SQL database, it triggers the alarm function when data value exceeds settings.
Device layer: all the high precision loggers records temperature, humidity and other data automatically,
then sends the data to ToMonitor for processing. With battery, our loggers continually records data
when the server is shutdown or there’s ine faults, so the data will not be lost .
The device layer includes temperature & humidity data logger and wireless repeater, the function of this
layer is to collect,record and upload temperature & humidity data . The data logger collects and records
temperature & humidity data from surrounding environment and upload it to a server via wireless repeater.
ToMonitor is server software, it stores data uploaded from data loggers and displays it on the software.
Users can set temperature and humidity value range for each devices, when the value exceeds limits,
the software will alarm user immediately.
ToClient is the client, user can access server via this software to view real-time/recorded dtata of each
temperature & humidity data logger.
